Introduction

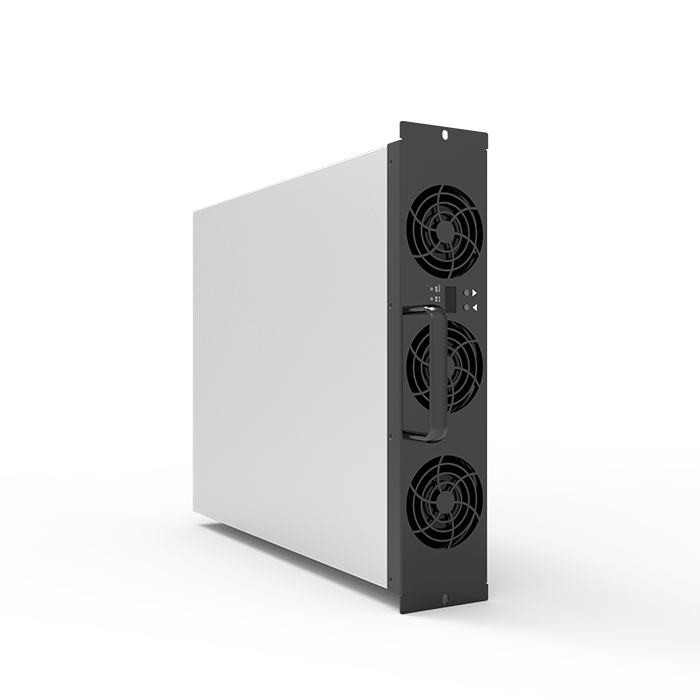

You feel it on a wet Friday arvo in Taupō: the charger is busy, the queue is growing, and everyone wants a full battery before the next leg. Every power module for EV charger works hard behind the scenes to make that happen. In fact, the quiet hero can be a targeted block like the DC DC isolated power module 20, which takes raw DC and makes it safe and steady for the car. Sites today push 150–300 kW, yet even a 2–3% conversion loss means heat, fan noise, and higher power bills. Add peak-hour loads and you get brownouts, tripped breakers, and annoyed drivers. So, which designs actually hold voltage under stress without cooking themselves silly—while keeping uptime sweet as?
Let’s dig into how small design choices make a big difference, then compare where newer modules outpace the old guard.
Deeper Look: Why Traditional DC Modules Struggle
Where do legacy designs fall short?
Older charger stacks were built around bulky power converters with modest switching frequency and big iron. They worked, sure, but they ran hot and responded slow when the vehicle changed its demand. Look, it’s simpler than you think: when the loop is slow and the thermal headroom is thin, voltage sags and fans roar. That means thermal derating kicks in right when the queue is longest. By contrast, a focused block like the DC DC isolated power module 20 is built to hold line and load regulation under sudden steps—the stuff you see when a battery warms up mid-session. The result is fewer nuisance trips and a calmer site (less swearing in the car, too).
Then there’s safety and noise. Without solid galvanic isolation and a tidy EMI filter, the charger can toss ripple back to the bus and upset other cabinets—funny how that works, right? Many legacy units also lack clean telemetrics over CAN bus or similar, so you get late alarms and blind spots. That makes maintenance reactive, not proactive. When you layer in modern SiC MOSFET stages and smarter control, you get faster transient response and lower switching losses. Fewer watts wasted. Less heat to dump. More time online.
Comparative Insight: Designing for Tomorrow’s Sites
What’s Next
The shift is clear: move from monolithic stacks to modular DC blocks that scale, self-protect, and report in real time. Newer principles lean on wide-bandgap devices, digital control loops, and better thermal paths. That mix lets a module hold tight regulation while cutting switching losses—so cabinets stay cooler and quieter. When you map that onto the yard, edge computing nodes and site controllers can orchestrate modules based on state of charge, cable temperature, and grid price. That’s when a building block like the DC DC isolated power module 20 shines. It isolates the vehicle side, tames bus voltage ripple, and feeds the control plane clean data for smarter load sharing. Even maintenance gets easier—swap a block, not a cabinet—so mean time to repair drops. See the linked spec for how isolation ratings and protection layers add up in practice (tiny details, big wins).
Stack the two approaches side by side and a pattern appears. Legacy designs hit current limits early, then slide into derate under heat. Modern modules hold output and keep their cool because losses are lower and the loop is smarter—funny how the quiet parts decide the loud outcomes, right? We also get better power factor correction upstream and less stress on feeders, which the utility will thank you for. In short, fewer surprise faults, more consistent charge curves, and happier drivers. To choose well, focus on three metrics: one, transient response time under a step load; two, full-power efficiency at realistic ambient temps (not just lab-cozy); and three, isolation and protection stack completeness, including fault reporting granularity. With those in hand, you’ll spot which kit is future-ready and which kit is, well, past its best.
Keep the gains small but steady, and the site runs sweet as—day after day, rain or shine. For more on the ecosystem around these modules, see winline charger.
